| ब्रांड नाम: | Seacent |
| मॉडल संख्या: | एसपीसीएस-18बी1215 |
| एमओक्यू: | बातचीत योग्य |
| कीमत: | negotiable |
| भुगतान की शर्तें: | एल/सी,टी/टी |

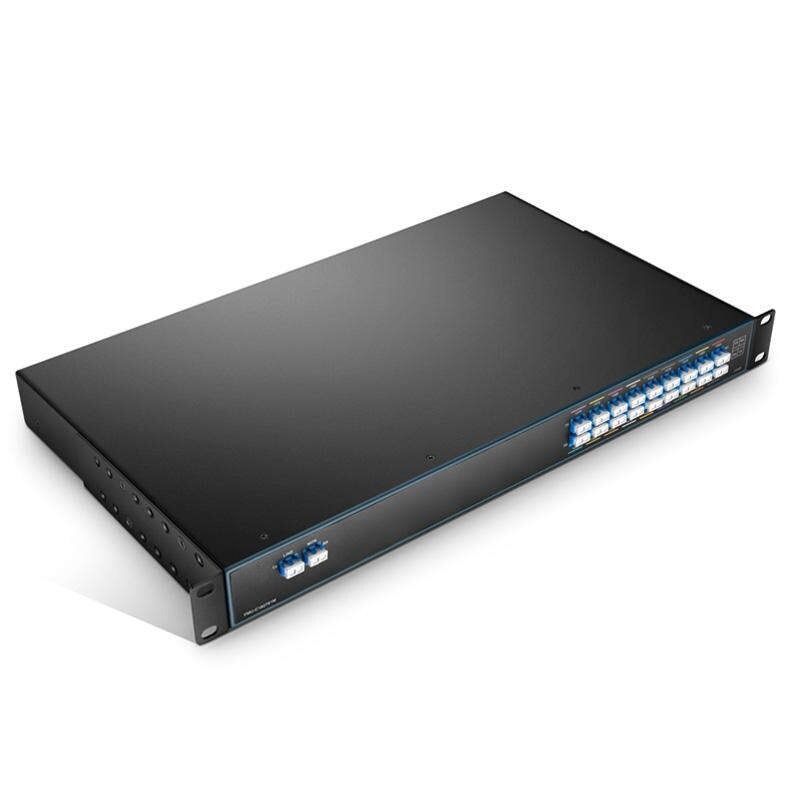

CWDM Mux Demux with low end-to-end insertion loss designed for wavelength multiplexing in optical communication networks.
Compact Coarse Wavelength Division Multiplexer (CCWDM) is a mini CWDM module with compact case size designing and features free-space structure. It multiplexes CWDM wavelengths (from 1271nm to 1611nm) to single fiber. Compatible with 3G/4G/5G Nokia, Ericsson, Huawei, ZTE.
Compliant with ITU-T G.694.2, CE, RoHS, IP25
| Parameter | 18CH |
|---|---|
| Operating Wavelength (nm) | 1260-1620nm |
| Channel Wavelength (nm) | 1271-1611nm |
| Channel Spacing (nm) | 20 |
| Channel Passband (nm) | CWL +/- 6.5nm |
| Insertion Loss / without connector (dB) | < 3.0 |
| Insertion Loss / with connector (dB) | < 3.0 |
| Channel Ripple (dB) | ≤ 0.5 |
| Minimum isolation (dB) - Adjacent | 30 |
| Minimum isolation (dB) - Non-adjacent | 45 |
| Polarization Mode Dispersion (PS) | < 0.2 |
| Polarization Dependent Loss (dB) | < 0.2 |
| Directivity (dB) | > 50 |
| Return Loss (dB) | > 45 |
| Maximum Power Handling (mW) | 500 |
| Operating Temperature (°C) | -5 ~ +70 |
| Storage Temperature (°C) | -40 ~ 85 |
| Fiber Type | G657A1 |
| Connector | LC/UPC port, other optional |
| Package dimension (mm) | Indoor box, 19" or 23" Rack Mount - Chassis |
| Installation accessories | Complete installation accessories included |
| Material | Powder-coated metal |
|
|
